I have found that most egg tray defects come from the interaction of five variables: pulp consistency, moisture, vacuum adsorption, mold condition, and drying control. The fastest diagnostic sequence is to inspect pulp consistency and moisture first, check mold and vacuum performance second, verify drying temperature and airflow third, and then examine pressure, transmission, hydraulic, and electrical systems.

Egg tray production converts waste paper into molded packaging through pulping, screening, refining, forming, dewatering, drying, stacking, and inspection. A defect that appears at the forming station may actually begin with poor waste paper preparation, while a tray that cracks after stacking may have a drying or moisture-control problem rather than a mold problem. In this guide, I explain practical solutions for common issues in the egg tray production process, including uneven thickness, weak edges, cracks, poor forming, sticking during demolding, incomplete drying, machine downtime, and avoidable energy loss.

The equipment configuration also affects the correct solution. Rayee, operated by Hebei Rayee Machinery Equipment Manufacturing Co., Ltd., states that its pulp molding equipment covers small semi-automatic systems through fully automated lines with stated capacities from 1,000 to 10,000 pieces per hour. The company also lists pulping, molding, drying, stacking, packaging, custom mold production, installation, training, and technical support as parts of its production-line service scope.

Key Takeaways

• Uneven thickness usually begins with inconsistent pulp concentration, blocked forming screens, poor agitation, or incorrect vacuum timing.
• Cracks and weak edges require separate checks for fiber bonding, excessive drying, mold wear, pressure, and handling impact.
• A symptom-to-root-cause decision tree reduces unnecessary part replacement and shortens machine troubleshooting time.
• Daily, weekly, monthly, and shutdown maintenance checks protect molds, pumps, belts, chains, motors, heaters, and drying equipment.
• Operators should confirm temperature, moisture, vacuum, pressure, and cycle time with calibrated instruments rather than visual judgment.
• Defect rate, scrap weight, downtime minutes, energy use, and output loss should be recorded for total-cost decisions.

What You Need Before Starting

Before applying solutions for common egg tray production problems, I recommend preparing a basic production record rather than relying on operator memory. Record the raw material mix, pulp concentration, tank temperature, forming vacuum, cycle time, drying temperature, dryer residence time, finished moisture, defect quantity, and machine downtime for every shift. Even a simple spreadsheet can show whether a defect follows a specific operator, batch of waste paper, mold, or production speed.

The basic tools should include a moisture meter, weighing scale, stopwatch, infrared thermometer, pressure gauge, vacuum gauge, clamp meter, insulation tester, belt-tension gauge, and cleaning brushes. A portable airflow meter is useful when drying becomes unstable, while a caliper can help compare tray wall thickness at the rim, bottom, corners, and divider peaks. For formal quality control, I would also use a compression test method appropriate to the package geometry, such as ASTM D642 as a reference for container compression testing, while defining internal acceptance values for the specific egg tray design.

A production line should also have a controlled sample area. Keep at least three samples from the beginning, middle, and end of each shift, and label them with the mold number, pulp batch, drying setting, and operator. This makes it possible to distinguish a material problem from an equipment problem.

!

How the Egg Tray Production Process Works

I diagnose egg tray production in process order because each stage creates conditions for the next stage. Waste paper is first sorted, shredded, and mixed with water in the pulping system. The pulp is then screened to remove plastics, adhesives, wire, and oversized particles before it enters the forming system.

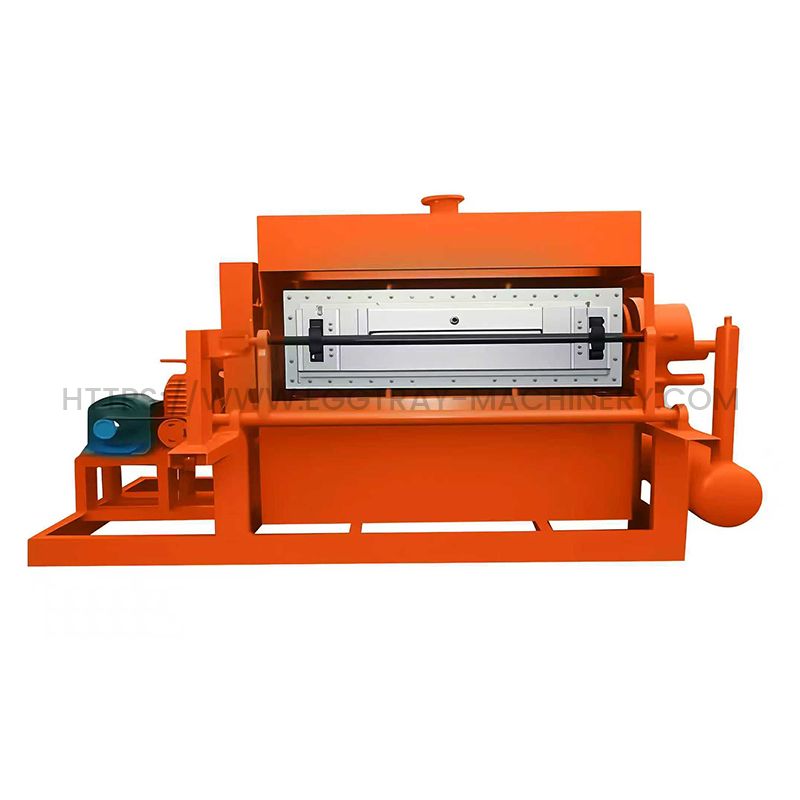

In the forming station, a mold moves into the pulp tank or receives pulp through a controlled distribution system. Vacuum adsorption pulls fibers onto the mold surface while water drains through forming screens. The mold then transfers the wet tray to a transfer mold, conveyor, or drying system, depending on whether the line uses natural drying, metal drying, gas drying, or another configuration.

Drying removes the remaining water and fixes the tray structure. If the tray enters the dryer with excessive moisture, the drying system consumes more energy and may produce wet centers, warped edges, or microbial contamination during storage. If it is dried too aggressively, the fiber network can become brittle and crack during stacking or transport.

Rayee identifies three principal product series—egg tray machines, industrial pulp packaging machines, and seedling tray equipment—and lists more than 30 equipment models. Its published project information also shows different line configurations for customers in India, Ghana, South Africa, Malaysia, and Egypt, which illustrates why operating parameters must be confirmed against the specific line design rather than copied from another installation.

Step 1 — Check Pulp Consistency and Raw Material Preparation

What to Do

Start by measuring the pulp concentration at the forming tank, not only at the pulper outlet. A practical commissioning range for many molded-fiber systems may begin around 1.0% to 2.0% dry fiber by mass, but this is not a universal production rule. I would verify the correct range through a solids test, equipment manual, trial samples, and final tray strength results.

To measure consistency, take a representative pulp sample, weigh it, dry it under a controlled method, and calculate the percentage of dry solids. ISO 638-1 can be used as a reference for determining dry matter in paper, board, and pulp materials, but the plant should establish its own sampling procedure and acceptance range. If the actual concentration changes by more than approximately 0.2 percentage points between samples, the forming station may receive inconsistent fiber mass.

Inspect the waste paper preparation system for plastics, wax-coated stock, wet-strength paper, tape, metal, and oversized pieces. Check pulper knives, screen holes, agitator operation, dilution-water valves, and tank mixers. The pulp should remain suspended rather than settling heavily at the tank bottom.

Why This Matters

Pulp that is too thin can produce light trays with incomplete corners, thin rims, and poor compression strength. Pulp that is too thick can create heavy trays, slow drainage, blocked screens, poor mold filling, and higher material consumption. The target is not simply “more pulp”; it is a stable fiber distribution that deposits evenly over the complete mold surface.

Fiber length also influences strength. Excessive refining can shorten fibers and reduce drainage, while insufficient pulping can leave large fiber bundles that create rough surfaces and weak points. I recommend recording pulping time, screen condition, water temperature, and raw material composition for each batch.

Common Mistakes to Avoid

• Adding water by visual estimate: Use a measured tank volume and solids test instead of judging color or thickness.
• Mixing incompatible waste paper without a trial: Compare strength, drainage time, and drying behavior before changing the formula.
• Ignoring tank agitation: A stationary or weak mixer can cause the first trays and last trays of a batch to have different fiber mass.
• Allowing contaminants into the pulper: Plastic film, string, and metal can block screens, damage pumps, and create forming defects.

Step 2 — Correct Uneven Thickness and Poor Pulp Distribution

Uneven egg tray thickness is one of the clearest signs that the forming conditions are not balanced. I first compare the tray rim, base, corners, and divider peaks using a caliper or a controlled mass comparison. If one side is repeatedly heavier, the issue is likely related to pulp flow, mold alignment, vacuum distribution, or screen blockage rather than random material variation.

Check whether the forming mold is level and correctly aligned with the pulp tank, transfer mold, or suction position. Even a small alignment error can cause one side to contact the pulp earlier or receive stronger vacuum. Inspect forming screens for blocked holes, torn mesh, loose fasteners, and uneven tension.

Next, check the vacuum system. Inspect the vacuum pump oil or water supply, filter, separator, hoses, valves, seals, and pressure readings. A practical troubleshooting test is to compare the vacuum level and time required to reach that level at the beginning and end of a shift. A fall of more than 10% from the normal baseline should trigger an inspection rather than a speed increase.

Why This Matters

Vacuum adsorption determines how quickly water leaves the pulp and how evenly fibers accumulate on the mold. If vacuum is too weak, the tray may have thin corners, incomplete divider peaks, or poor transfer. If vacuum is applied too late or released too early, the wet tray may deform during demolding.

The correct vacuum value depends on mold design, pump capacity, screen condition, and pulp concentration. I would not copy a pressure number from another factory. Instead, record the value that produces complete forming, stable transfer, acceptable moisture, and the lowest defect rate, then protect it as the line baseline.

Common Mistakes to Avoid

• Increasing vacuum without checking the screen: A blocked screen can make the operator compensate with excessive pump loading.
• Changing pulp concentration and vacuum simultaneously: Adjust one variable at a time so the cause of improvement is measurable.
• Operating with a loose mold frame: Movement changes the gap and creates repeated thickness variation.
• Measuring only one tray: Use samples from at least three production points and multiple mold positions.

Step 3 — Prevent Weak Edges and Cracked Egg Trays

What to Do

When trays have cracks or weak edges, separate fresh-forming cracks from drying cracks and handling cracks. Fresh-forming cracks usually appear during transfer or demolding and point toward insufficient fiber bonding, excessive mechanical force, poor vacuum release, mold contamination, or an unstable wet-tray structure. Drying cracks often appear at the rim, corners, and thick areas after the tray has lost moisture too quickly.

Check the pulp formula, fiber bonding, wet weight, and transfer timing. A tray that is underweight by 5% to 10% compared with the approved sample may not have enough fiber at the rim or divider peaks. A tray that is overweight may contain thick zones that shrink unevenly during drying.

Inspect the transfer mold and its release timing. The transfer mold should contact the wet tray evenly without crushing the rim. Check whether compressed air or vacuum release is too strong, whether the mold surface contains pulp residue, and whether the tray is being removed before it has sufficient structural support.

Why This Matters

Weak edges are often blamed on drying, but the defect may start with poor pulp distribution or mold impact. Fiber bonding depends on adequate contact between fibers and controlled water removal. Rapid surface drying can form a stiff outer layer while the center remains wet, producing internal stress during continued drying.

For compression testing, define an internal acceptance level using the tray’s intended load, stacking height, transport conditions, and customer requirements. A sample test should include trays from different mold cavities and different times during the shift. Test results should be recorded alongside finished moisture and tray weight so that strength failures can be linked to process conditions.

Common Mistakes to Avoid

• Drying every defect at a higher temperature: Higher temperature may reduce surface moisture while increasing warping and edge cracking.
• Handling trays before they reach the target moisture: Wet trays deform, while over-dried trays become brittle.
• Ignoring stacking impact: Misaligned stackers can crush rims even when forming and drying are stable.
• Using only visual inspection: Combine visual checks with weight, moisture, and compression measurements.

Step 4 — Solve Poor Forming and Incomplete Tray Shape

Poor forming includes missing corners, shallow pockets, deformed divider peaks, holes, and incomplete tray surfaces. I first inspect the mold and forming screen, then compare the defect location with the vacuum port layout. If the same cavity or mold area fails repeatedly, the fault is probably local rather than a general pulp problem.

Check mold holes, screen tension, suction channels, seals, and the distance between the mold and pulp surface. A blocked suction passage can prevent pulp from reaching one section, while a damaged screen can allow excessive water flow and produce a thin patch. Mold alignment problems can also prevent the mold from entering the pulp at the intended depth.

Review the forming cycle time and mold dwell time. A faster cycle can increase output, but if drainage is incomplete, the wet tray may not have enough strength for transfer. I recommend changing cycle time in small increments, such as 5%, while recording tray mass, moisture, defect rate, and transfer stability.

Common Mistakes to Avoid

• Replacing the entire mold for one blocked channel: Clean and inspect the affected passage before ordering a replacement.
• Running at maximum speed before completing trials: Establish a stable baseline at a lower speed, then increase output gradually.
• Ignoring water temperature: Temperature changes can affect pulp drainage and pump performance.
• Using worn screens beyond their service condition: Screen deformation changes local fiber deposition.

Step 5 — Fix Demolding, Sticking, and Transfer Problems

Egg trays sticking to molds usually involve surface contamination, insufficient release air, excessive wetness, damaged mold surfaces, or incorrect transfer timing. I begin by stopping the line under the required safety procedure and inspecting the mold for dried pulp, adhesive residue, burrs, dents, and blocked holes. The inspection should cover both forming and transfer molds.

Check compressed air pressure, vacuum release, valve timing, and actuator movement. A pressure reading alone is not enough; the operator should verify that air reaches all relevant ports at the correct point in the cycle. If one side releases earlier, the tray may twist, causing weak corners and repeated deformation.

The mold surface must remain clean without aggressive scraping that changes cavity dimensions. Use tools and cleaning agents approved for the mold material. If sticking returns after cleaning, compare the tray moisture and pulp concentration with the approved baseline before changing mechanical settings.

Why This Matters

Demolding defects increase scrap and can also cause secondary damage. A tray that survives the forming station may be crushed by a misaligned transfer plate, dropped by a delayed gripper, or distorted by a stacker that receives it off-center.

I recommend tracking transfer-related scrap separately from forming scrap. If total scrap is 4%, for example, record whether 1.5 percentage points come from forming, 1.0 from drying, 1.0 from transfer, and 0.5 from stacking. This breakdown provides a more useful production-cost picture than one overall defect number.

Step 6 — Improve Egg Tray Drying and Reduce Production Defects

How Poor Drying Affects Egg Tray Quality

Poor drying can leave trays soft, increase storage-related deformation, encourage odor or microbial growth, and raise transport damage. Over-drying can make the fiber structure brittle, especially at thin rims and divider peaks. Uneven airflow can also produce trays that pass a surface inspection while retaining excessive moisture in thicker areas.

For egg tray drying system optimization, I recommend measuring temperature at the dryer inlet, middle, outlet, and product level. Do not rely only on the burner or heater display because air temperature and tray temperature may differ. Record airflow direction, fan condition, damper position, residence time, and finished moisture for samples from multiple dryer zones.

A practical starting point for many paper-molded products may be a finished moisture range around 8% to 12%, but the correct target depends on raw material, tray thickness, storage climate, and customer requirements. Confirm the target with moisture testing and a storage trial. Supplier-specific temperature values should be treated as commissioning settings, not universal standards.

Drying Troubleshooting Procedure

1. Measure finished moisture at the rim, base, and divider area.
2. Compare moisture across dryer positions to locate airflow or loading imbalance.
3. Check heater output against the temperature setpoint and actual product-zone temperature.
4. Inspect fans, ducts, dampers, and filters for reduced airflow.
5. Verify conveyor speed and calculate approximate residence time.
6. Reduce loading density if trays block airflow between layers.
7. Review fuel or electrical consumption after each change.

If the tray surface is dry but the center remains wet, reduce loading density, improve airflow circulation, or extend residence time before increasing temperature sharply. If the rim cracks while the center remains acceptable, reduce thermal stress and investigate tray thickness variation.

Common Mistakes to Avoid

• Controlling only air temperature: Moisture removal also depends on airflow, humidity, tray loading, and residence time.
• Placing wet trays too closely together: Restricted airflow creates wet pockets and longer drying cycles.
• Ignoring burner or heater maintenance: Dirty burners, failing elements, and blocked ducts reduce heat transfer.
• Failing to verify moisture after a weather change: Ambient humidity can change drying behavior even when machine settings remain constant.

Step 7 — Egg Tray Machine Troubleshooting and Maintenance

Daily Checks

At the beginning of each shift, I inspect guards, emergency stops, sensors, lubrication points, mold surfaces, vacuum filters, pump levels, belts, chains, and visible air or water leaks. Operators should confirm that the vacuum gauge, pressure gauge, temperature display, and moisture meter produce plausible readings. Any abnormal noise, vibration, smell, or temperature should be recorded before production reaches full speed.

Clean pulp residue from molds, transfer surfaces, screens, tanks, and drainage channels after the planned production period. Sanitation is part of defect prevention because decomposing pulp can change odor, clog passages, increase bacterial growth, and contaminate fresh pulp batches.

Weekly Checks

Weekly maintenance should include belt alignment, chain tension, sprocket wear, bearing temperature, pump seals, valve response, filter condition, and electrical cabinet cleanliness. Check motor current against the normal baseline; a sustained increase of 10% or more may indicate overload, misalignment, bearing friction, pump restriction, or voltage imbalance.

Inspect the heating and drying system for burner deposits, fan vibration, loose duct joints, blocked filters, and temperature-sensor drift. Verify that the conveyor does not slip under normal load. A slipping conveyor changes residence time and can create both under-dried and over-dried trays in the same shift.

Monthly Checks

Monthly checks should include mold alignment, frame fasteners, hydraulic oil condition, cylinder seals, pump performance, vacuum leakage, electrical terminal tightness, sensor calibration, and structural cracks. Measure vacuum decay with the system isolated and compare it with the previous month’s value. A faster decay rate indicates leakage in hoses, valves, seals, or mold connections.

Review production KPIs at the same time. Useful indicators include pieces per hour, finished moisture, average tray weight, compression strength, defect rate, scrap weight, unplanned downtime, energy per 1,000 trays, water consumption, and maintenance hours. These figures allow me to distinguish a machine upgrade from a parameter-control problem.

Shutdown Checks

For extended shutdowns, drain or protect pumps according to the equipment design, clean pulp tanks, dry wet-contact surfaces, release unnecessary hydraulic pressure, cover molds, inspect electrical cabinets for humidity, and record all open defects. Mark parts that require replacement before restart rather than waiting for failure during production.

Restart verification should include a safety inspection, emergency-stop test, low-speed dry run, vacuum test, heater test, transfer test, and sample production run. Approve the line only after the first samples meet the recorded criteria for shape, weight, moisture, and strength.

A Symptom-to-Root-Cause Decision Tree

I use the following sequence to isolate faults without changing several settings at once:

This approach prevents an operator from increasing pressure when the actual problem is poor pulp consistency. It also prevents unnecessary mold replacement when cleaning a blocked channel or repairing a leaking vacuum hose would solve the defect.

Step 8 — Quantify Scrap, Downtime, and Total Production Cost

The economic effect of a defect should be calculated from lost output, wasted pulp, energy consumed, labor time, rework, and customer claims. A useful formula is:

Total defect cost = scrap material cost + energy used on rejected trays + labor cost + downtime output loss + rework cost + delivery or claim cost.

For example, assume a line is designed to produce 5,000 trays per hour, the contribution margin is $0.025 per tray, and an avoidable stoppage lasts 2 hours. The direct output opportunity loss is approximately $250, before adding pulp, labor, heating, and restart waste. If the line operates 2,000 hours per year, reducing unplanned downtime by 1% represents about 20 production hours recovered.

When assessing whether upgrading an egg tray production line is worthwhile, compare the investment with measurable improvements. A project that reduces scrap from 8% to 4%, cuts downtime from 6% to 3%, and lowers energy use by 10% per 1,000 trays may justify investment, but the result depends on selling price, utilization, labor rates, financing, spare parts, and installation costs.

I would request a written technical specification covering rated output, accepted raw materials, mold dimensions, power load, water requirements, dryer type, expected delivery schedule, installation scope, training, spare parts, warranty response, and acceptance-test criteria. Rayee’s published information states that standard models typically require 30–45 days for delivery, while customized production lines and larger equipment generally require 45–60 days; these figures should be confirmed in the purchase contract with milestones and delay responsibilities.

How to Improve Egg Tray Production Quality

Quality improvement begins with a controlled baseline. Select one mold, one pulp formula, one cycle time, and one dryer setting, then record tray weight, moisture, dimensions, compression result, defect type, and energy use. After the baseline is stable, change one variable and compare at least three production samples from different points in the shift.

I also recommend establishing an acceptance checklist with measurable limits. It may include maximum weight variation, allowable moisture range, minimum compression result, dimensional tolerance, acceptable surface defects, and maximum scrap rate. The specific numbers should come from customer requirements, product testing, and the intended stacking and transport conditions.

Corrective actions should be documented using five fields: symptom, suspected cause, confirmed cause, action taken, and verification result. For example, “thin left-side corners” is a symptom; “blocked vacuum channel” is a suspected cause; “screen removed and channel cleaned” is the action; “left-side weight returned within the approved tolerance for three consecutive samples” is the verification.

Safety and Sanitation During Troubleshooting

Mechanical troubleshooting must follow lockout and isolation procedures. Before cleaning a mold, entering a guarded area, opening a pump, adjusting a chain, or inspecting a heater, isolate electrical, hydraulic, pneumatic, thermal, and mechanical energy sources. Verify zero movement and zero pressure before placing hands near moving components.

Drying systems require additional controls because heaters, burners, hot air, and fuel systems can remain hazardous after the line stops. Operators should follow the equipment-specific shutdown sequence, allow hot surfaces to cool, and inspect ventilation and exhaust paths. Never bypass an interlock or emergency stop to maintain production.

Sanitation should be included in the same corrective-action record as mechanical maintenance. Remove accumulated pulp from tanks, screens, molds, drains, and conveyors, and prevent stagnant water from remaining in contact with production surfaces. A clean line produces more consistent pulp flow and reduces the chance that biological growth or decomposed fiber will alter tray odor and appearance.

When to Repair, Replace, or Upgrade

Repair is usually appropriate when the defect is caused by a blocked screen, leaking hose, loose fastener, worn belt, dirty sensor, incorrect alignment, or unstable operating parameter. Replacement becomes more reasonable when a mold has permanent dimensional damage, a pump has repeated seal failure, a motor exceeds its normal current after alignment, or a heating component cannot maintain the required temperature.

An upgrade should be evaluated when the existing line cannot maintain the required output, moisture, strength, or downtime target despite documented maintenance and parameter control. I would compare the current line with the proposed system using a 12-month total-cost model that includes purchase price, installation, training, energy, water, labor, spare parts, downtime, and expected scrap reduction.

Rayee states that it provides small, medium, and large production configurations, with customizable capacity from 1,000 to 10,000 pieces per hour, as well as customized drying systems and molds. That range may support different factory sizes, but the buyer should still confirm actual acceptance-test output using the intended waste paper, mold, tray design, and local energy conditions.

Conclusion

The most effective solutions for common issues in the egg tray production process begin with measurement rather than immediate machine adjustment. I would first test pulp consistency and moisture, then inspect mold alignment and screens, verify vacuum adsorption, examine transfer and pressure settings, and finally check drying temperature, airflow, transmission, hydraulic, and electrical systems.

Manufacturers should maintain daily, weekly, monthly, and shutdown inspection schedules linked to defect rate, finished moisture, compression strength, downtime, scrap weight, energy use, and output per hour. This creates a traceable connection between maintenance actions and financial results. It also helps separate egg tray production defects from raw material problems.

My recommended next steps are to establish a baseline for one production shift, create a symptom-to-root-cause log, calibrate the essential measuring instruments, define product acceptance limits, and request a documented line specification before purchasing or upgrading an Egg Tray Machine. For a supplier evaluation, review mold design, vacuum capacity, drying configuration, delivery milestones, installation support, spare-parts access, training, and restart verification—not only the advertised pieces-per-hour figure.
